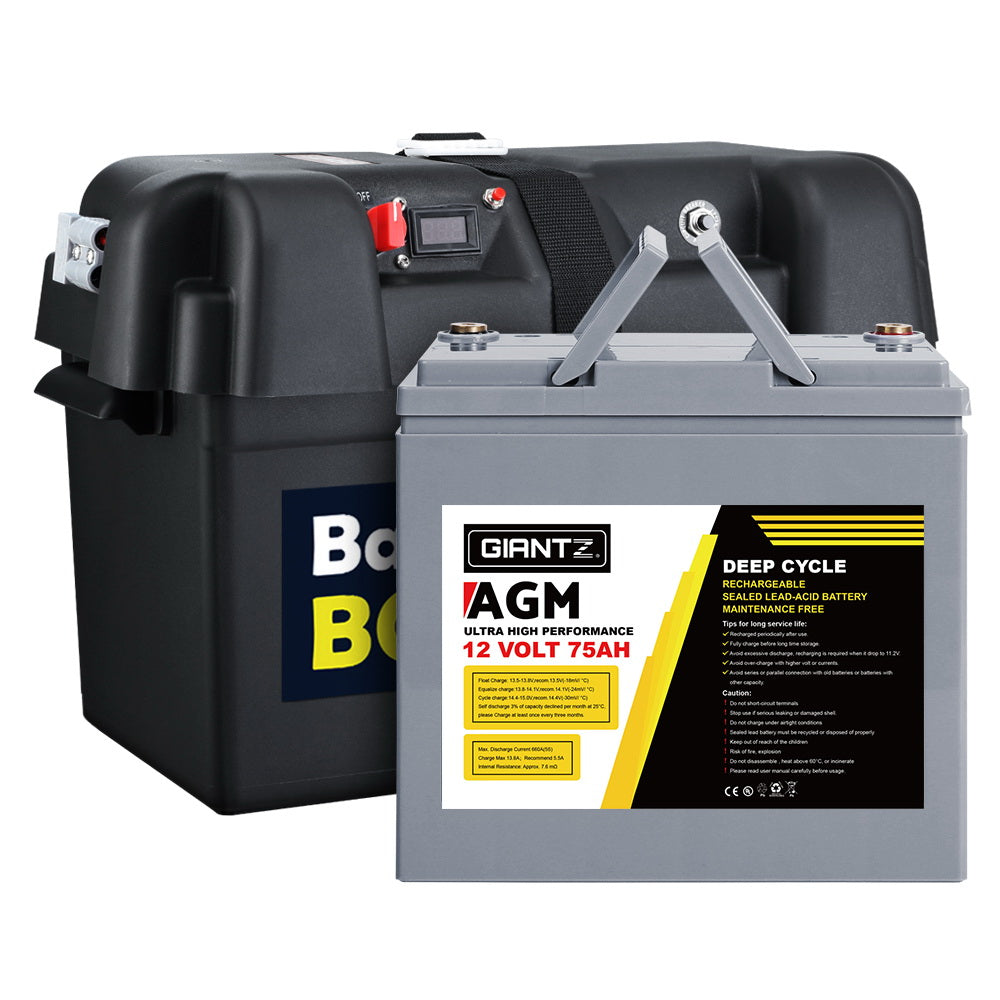

From a powerful battery to a formidable power station. That is what THE GIANTZ Deep Cycle Battery and Battery Box combo can do. On its own, the 75Ah 12V battery features an incredible cycle life of up to 1400 cycles. What you get is a longer, consistent and more drawn out charge all the time. And with its advanced AGM technology, the battery enables better electrolyte absorption, cyclic stability and frequent charging without affecting performance. The bolt-down terminals also allow for a more reliable experience, and not least, the high oxygen-recombination efficiency results in superior deep discharge recovery. And not to be outdone, the battery box easily fits the battery and together, they can power up a host of 12V devices including camping lights and portable fridges with its cigarette lighter socket as well as mobile phones and tablets with the two USB ports. The box itself can be charged using solar panels or any power source with its quick-connect Anderson plugs. Better still, the box comes pre-wired, so all you need to do is connect to the deep cycle battery terminals and it is good to go. More power to you. That is definitely true with the GIANTZ deep cycle battery and battery box.
Product Features:
75Ah battery:
Greater cycle life
Max. cycle life of 1400 cycles
Industry-leading build life
Higher sulfation resistance
Longer storage life
Maintenance-free
Superior deep discharge recovery
Better low temperature performance
High oxygen-recombination efficiency

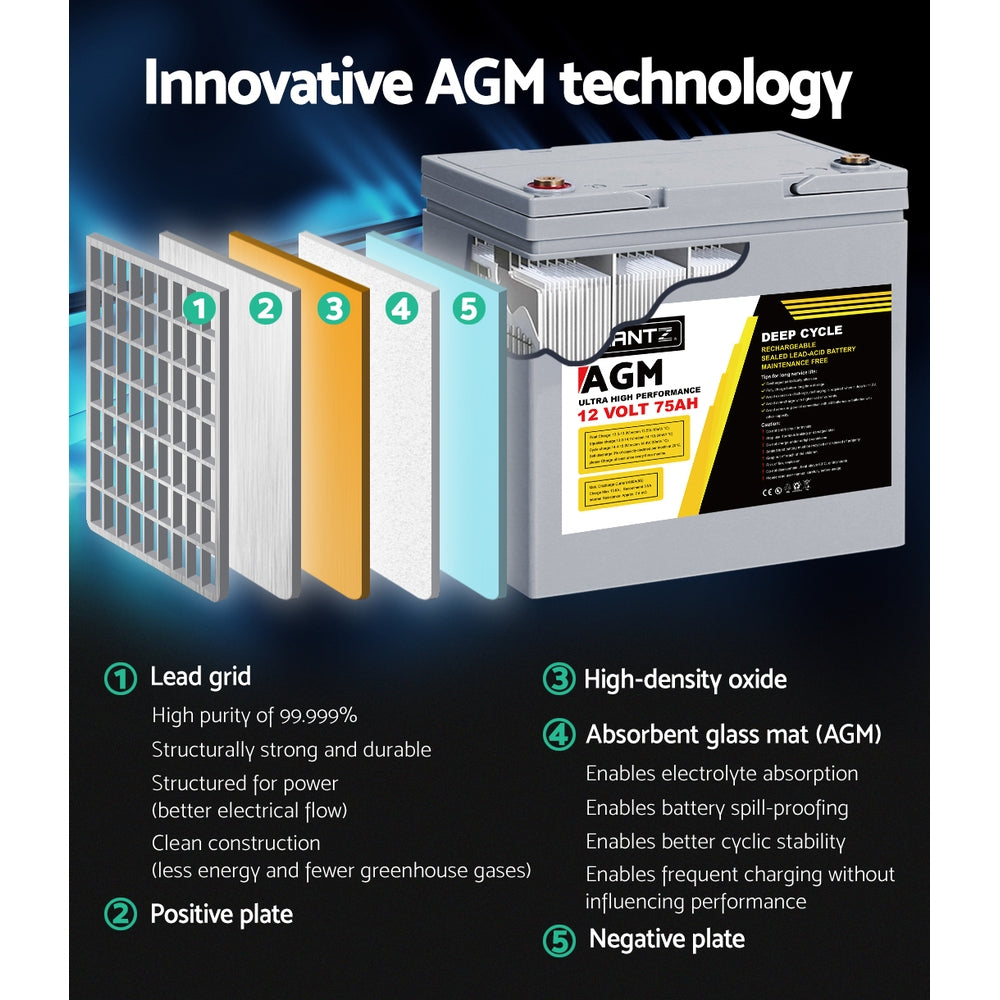

Advanced AGM technology
Spill-proof, leak-proof and non-gassing
Bolt-down terminals
Convenient carry handle
Battery box:
Protective and portable
User-friendly
Digital voltage indicator
10A resettable circuit breaker
Two USB ports
Cigarette lighter socket
Anderson plugs
Positive and negative terminals
Sturdy housing
Heavy-duty carry handles
Tie down strap
Product Specifications:
75Ah battery:

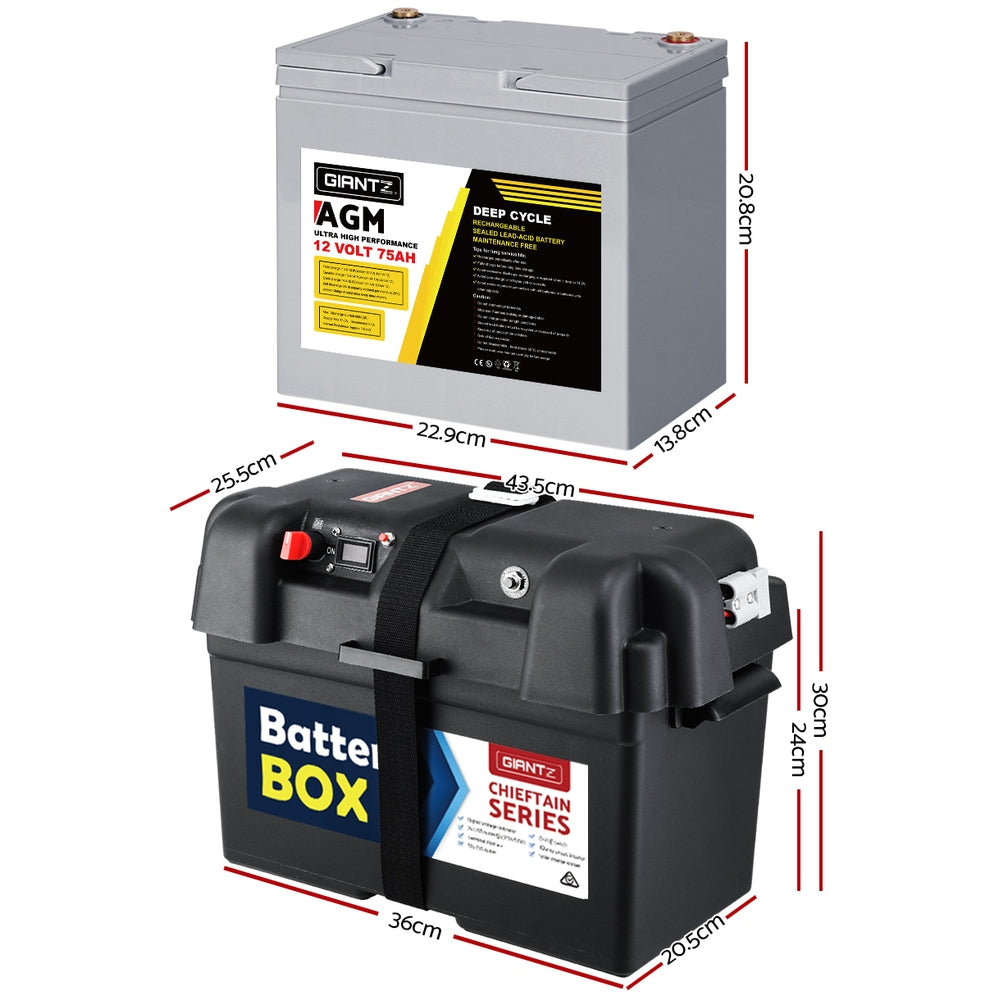

Overall dimensions: 22.9cm x 13.8cm x 20.8cm
Approx. weight: 15.5kg
Container material: ABS
Terminals: Bolt-down
Nominal voltage: 12V
Rated capacity (10-hour rate): 75Ah

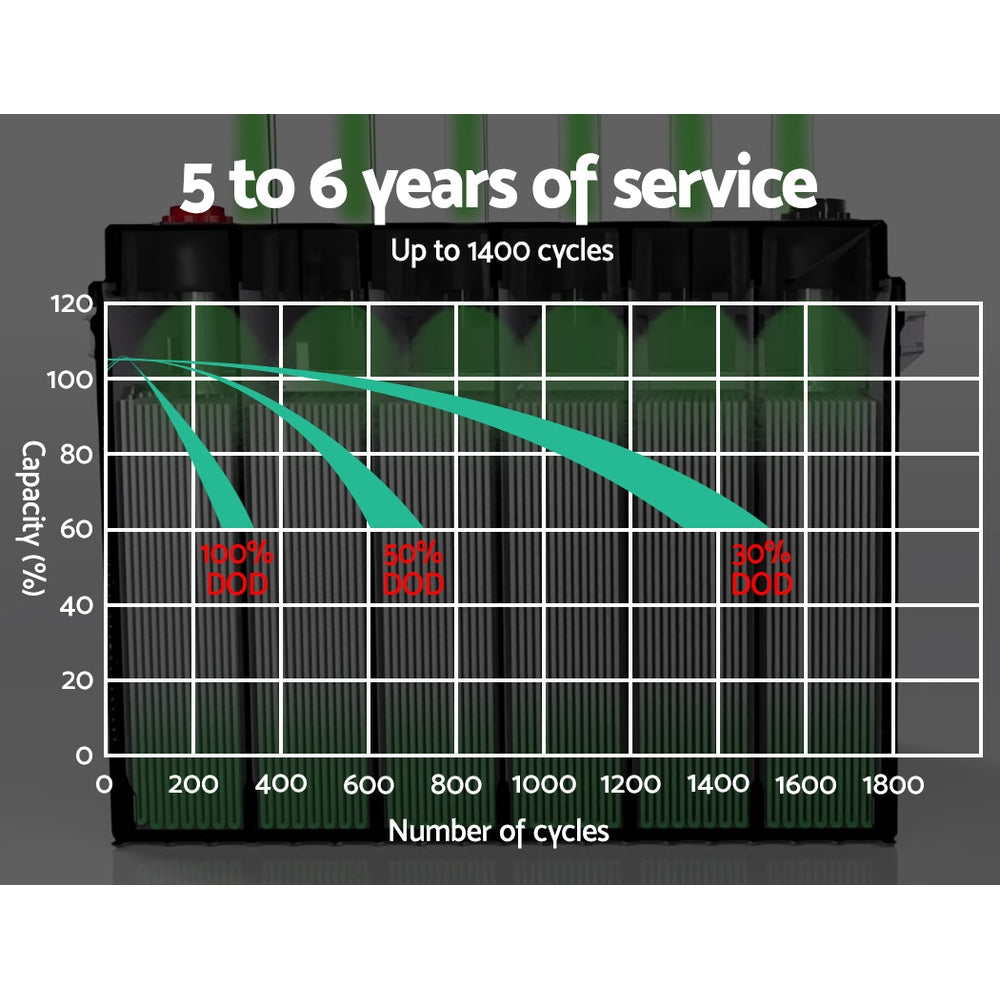

Maximum cycle lIfe: 1400 cycles (@30% DOD)
Internal resistance: Approx. 7.6mΩ
Maximum discharge current: 660A (5s)
Maximum charge current: 13.8A
Operating temperature ranges:
Discharge: -15°C to 50°C
Charge: -20°C to 50°C
Storage: -20°C to 50°C
Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
Float charge: 13.5 to 13.8V
Equalise charge: 13.8 to 14.1V
Cycle charge: 14.4 to 15.0V
Self-discharge 3% of capacity declined per month at 25℃
Battery box:
Overall dimensions: 43.5cm x 25.5cm x 30cm
Inner dimensions: 36cm x 20.5cm x 24cm
Package Contents:
1 x Giantz 12V 75Ah AGM Deep Cycle Battery & Battery Box
1 x Battery box
1 x User instructions
